Product introduction:

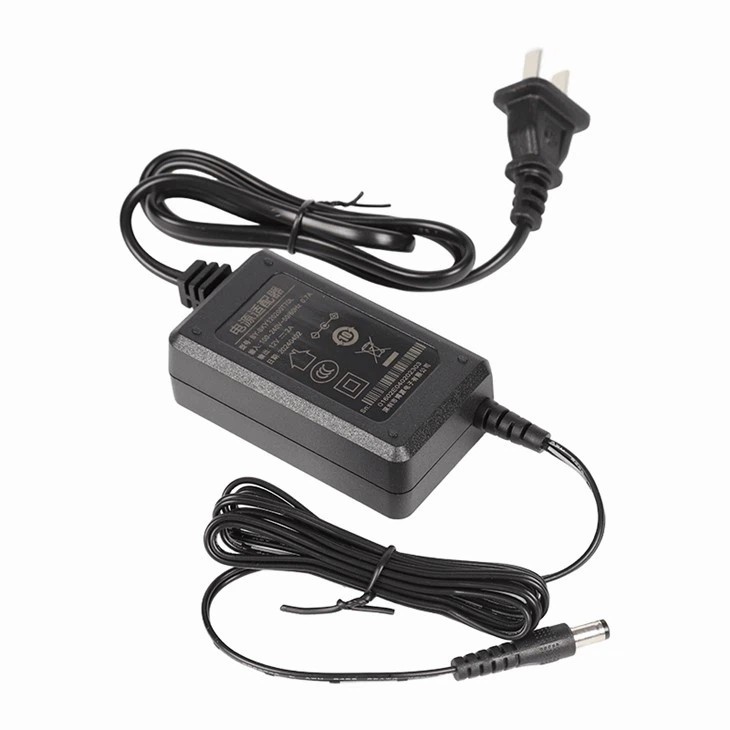

The 24W Power Adapter represents the next generation of reliable power conversion technology, specifically engineered to meet the rigorous demands of modern IT infrastructure and industrial automation systems. This high-efficiency switching power supply delivers a consistent 12V/2A DC output with exceptional voltage regulation (±2% tolerance), ensuring optimal performance for sensitive electronic equipment. Designed with global deployment in mind, the 24W Power Adapter features an ultra-wide 90V-264V AC input range that automatically adapts to fluctuating power conditions, making it equally suitable for use in regions with unstable grid infrastructure as it is in developed markets with stable power networks.
Product Feature
24W High Power
12V/2A output for demanding IT devices.
01
Global Voltage Support
90V-264V input range, compatible with CH/EU/US standards.
02
Safety Certified
Meets CCC standards with over-voltage, over-current, and short-circuit protection.
03
Energy Efficient
Average efficiency ≥85.5%, no-load power ≤0.1W.
04
Industrial Durability
Operates in -10℃~45℃, passes salt spray/drop tests, and offers 100,000-hour MTBF.
05
Product Application
Powering routers, switches, and modems.
Industrial control systems and surveillance equipment.
What truly sets this power adapter apart is its industrial-grade construction and comprehensive protection systems. The unit incorporates advanced thermal management with a high-temperature resistant casing (UL94 V-0 flame retardant material) and intelligent fan-less cooling design, allowing continuous operation in ambient temperatures ranging from -10℃ to 45℃. Electrical safety is ensured through triple-protection circuitry featuring over-voltage protection (OVP up to 15V), over-current protection (OCP at 2.5A), and short-circuit protection (SCP with auto-recovery). The adapter's exceptional 85.5%+ conversion efficiency not only reduces energy waste but also minimizes heat generation, while its remarkably low 0.1W no-load power consumption exceeds global energy efficiency standards. The 24W Power Adapter combines power and reliability, backed by CCC certification. Whether for IT or industrial use, this adapter delivers unmatched performance!
Hot Tags: 24w power adapter, China 24w power adapter manufacturers, suppliers, factory, 150w Power Adapter, 30w usb desktop charger, 56V 50W Desktop Power Supply, AC DC desktop power adapter, desktop computer charger, Gaming PC Adapter
Product specification
|
Rated Input voltage range |
100~240V |
|
Maximum Input voltage range |
90~264V |
|
Output |
12V/3A |
|
Input voltage frequency |
50/60Hz |
|
Average efficiency |
>85.5% |
|
Current of rated input voltage |
0.7A Max |
|
Inrush current |
50A |
|
No-Load Input Power Dissipation |
0.1W |
|
Operating temperature |
-10~45℃ |
|
Protection |
OCP/OVP/SCP |
|
MTBF |
100000hours |
|
Dimensions |
80*29*30mm |
|
Safety Certification |
CCC |
