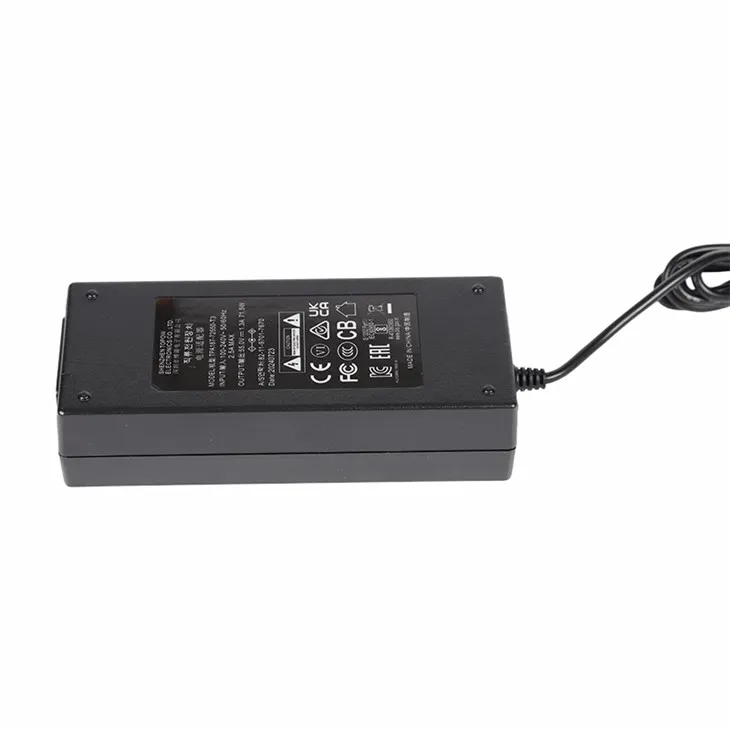

Desktop Power Adapter

Transformer: The transformer, the heart of the adapter, changes voltage levels by stepping up or down the incoming voltage. It operates on electromagnetic induction, where an alternating current in the primary winding creates a magnetic field that induces a current in the secondary winding, with the turn ratio determining the output voltage. This process adjusts high AC voltages from wall outlets (110-120V AC or 220-240V AC) to the lower DC voltages (such as 5V or 12V DC) needed by most electronic devices.

Rectifier: After the voltage is reduced, it needs to be converted from alternating current (AC) to direct current (DC), as most electronics require DC. This conversion is handled by a rectifier, which uses diodes to transform the bidirectional AC flow into a unidirectional DC flow. Rectifiers can range from a single diode to a more complex bridge rectifier with four diodes, with modern adapters often using full-wave rectifiers to produce a smoother DC output by utilizing both halves of the AC cycle.

Filter: After rectification, the DC current may still have ripples or fluctuations, which are smoothed out by a filter. Filters, typically consisting of capacitors, store and release electrical energy to stabilize the DC output. More advanced adapters may also use inductors to further filter out high-frequency noise, ensuring a cleaner power supply for sensitive electronics.

Voltage Regulator: Finally, a voltage regulator maintains a consistent output voltage despite variations in input voltage or power demands, crucial for preventing damage from overvoltage or undervoltage. Voltage regulators come in various forms: linear regulators provide steady output by dissipating excess power as heat, while more advanced switching regulators use high-frequency switching for better efficiency and smaller size. Switching regulators are more commonly used in modern adapters for their superior efficiency.
