Product introduction:

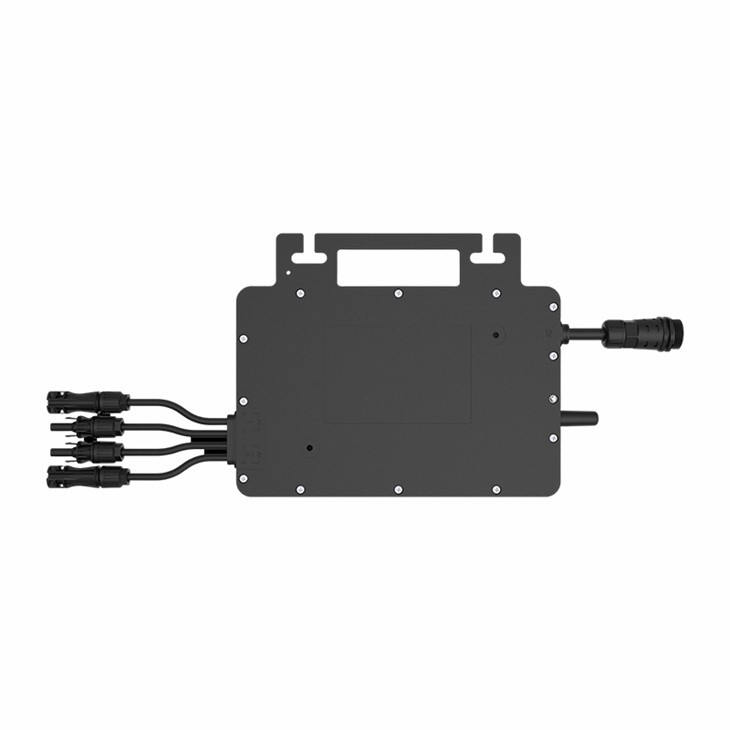

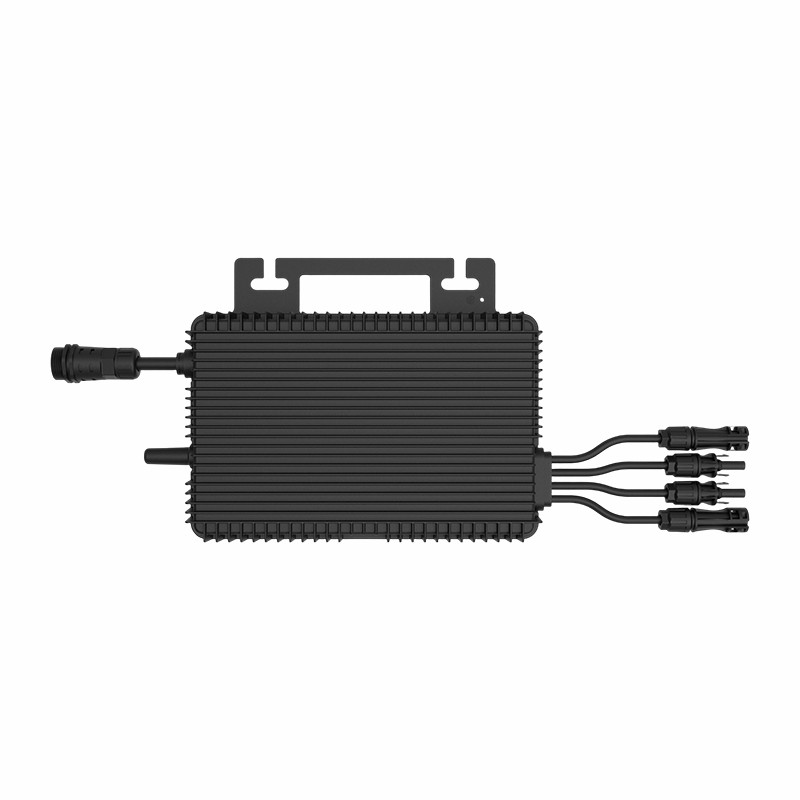

The 800W Micro Inverter is a cutting-edge power conversion device designed specifically for residential photovoltaic (PV) systems, offering an efficient and reliable DC-to-AC conversion solution for rooftop solar panels and small-scale energy storage applications. Its ultra-compact and lightweight design makes it ideal for flexible installations, including balcony DIY solar setups, while maintaining high performance and safety standards.
Engineered with next-generation GaN technology, this micro inverter delivers superior compatibility with high-power solar components, ensuring optimal energy harvest even under challenging conditions. With an industry-leading peak efficiency of 96.7% and integrated Maximum Power Point Tracking (MPPT) technology, it maximizes solar power generation by dynamically adjusting to panel performance, shading, and weather fluctuations.
With its compact design and high-performance capabilities, 800w micro inverter ensures reliable power conversion while integrating seamlessly with home solar setups.
Product Advantage
HIGH YIELD:Ultra-high Power Generation Efficiency, Hours, Return On Investment (RO)
GaN Technology
GaN Technology to provide perfectcompatibility with high power components
Conversion rate of 96.7%
Conversion rate of 96.7% to improvepower generation
60°c output
Long-temm Full Load Output at 60°C,No Load Drop at High Temperature
SAFE AND RELIABLE
DC Voltage<60v
Rapid shutdown Function (RSD)
IP67 Safety Protection
Service Life up to 25 Years
INTELLIGENT OPERATION AND MAINTENANCE
Modular Design, Plug-and-Play
Remote Real-time Monitoring
EnergyIntelligence Management Platform
7x24 Hours Online Service
.
Product Application
Household Rooftop Solar Power Systems
Small-Scale Off-Grid/Grid-Tied Energy Storage Solutions
Residential Applications with High Safety & Efficiency Requirements
Small body design to flexibly cover balcony DIY, household use, industrial and commercial and other full multi-scenarios.
Balcony DlY
Household Use
Commercial & Industrial
FAQ
01.What is the maximum DC input power and voltage for this 800W micro inverter?
02.What is the inverter's peak conversion efficiency?
03.Can users monitor performance remotely?
04.Which international certifications does it have?
05.Can we order OEM/ODM or customize labeling?
06. What grid standards or markets is it compatible with?
Hot Tags: 800w micro inverter, China 800w micro inverter manufacturers, suppliers, factory, 800w Micro Inverter, Balcony photovoltaic, micro inverter
Product specification
|
Model |
TPS800MA |
TPS800MB |
|
Max solar panel input power |
2×500W |
2×500W |
|
Working Voltage Range |
22-60V d.c. |
22-60V d.c. |
|
Maximum Input Current |
14A |
18A |
|
AC Rated Power |
800VA |
800VA |
|
AC Rated Voltage |
230V |
230V |
|
Nominal Frequency Range |
50Hz/60Hz |
50Hz/60Hz |
|
Power Factor |
>0.99 |
>0.99 |
|
Peak Inverter Efficiency |
96.50% |
92.70% |
|
Efficiency of MPPT |
99.80% |
99.80% |
|
Total Harmonic Distortion |
<3% |
<5% |
|
Cooling |
Natural Cooling |
Natural Cooling |
|
Ambient Temperature |
-45℃~+65℃ |
-20℃~+50℃ |
|
Protection Level |
IP67 |
IP67 |
|
Communication |
Sub-1G,RS-485 ,Wifi |
Wifi |
|
Warranty |
10 years |
10 years |
|
Compliances |
CE,VDE4105 |
CE,VDE4105 |
|
G.W. |
3Kg |
2.8Kg |
|
Dimensions |
265*172*35mm |
284*200*49mm |
