Product introduction:

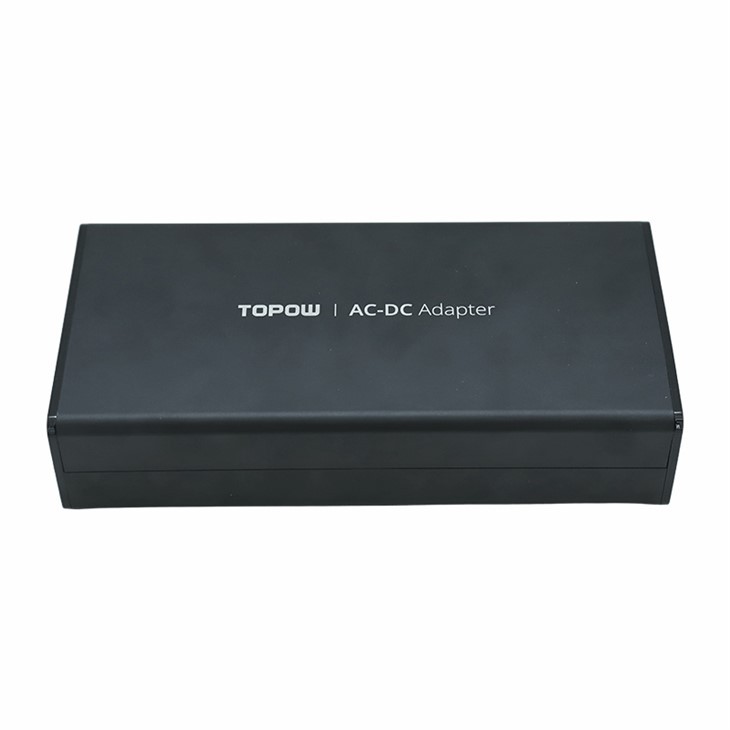

This Electrical Scooter Charger features 4th-gen adaptive 4-stage charging (trickle/CC/CV/float) for 58.8V Li-ion batteries, achieving 92% efficiency across 90-264VAC input. CE/UL62368 certified, its digital control automatically optimizes 10A fast-charging curves to extend battery life by 30% versus conventional chargers - ideal for battery swap stations and commercial fleets.
The military-grade 216×103×50mm housing integrates temperature-controlled fan and multi-layer cooling, operating below 45dB. With OVP/OCP/SCP/OTP protections and IP20 rating, it meets EN55032 Class B EMI standards at PF>0.95. Stable 580W output from -20℃ to 40℃ with -20℃~70℃ storage capability.
The charger utilizes AEC-Q200 certified components with 100% burn-in testing. Its "Smart Sleep" mode reduces standby power below 0.5W, while LED indicators and buzzer alarms provide real-time status. Passing salt spray (96hrs) and 3m drop tests, it guarantees reliability for outdoor charging stations
In terms of product features, the intelligent charging protection with its 4 - stage smart charging algorithm is a game - changer, offering unparalleled battery health optimization. The high - efficiency design, with its 92% conversion efficiency, saves more than 15% energy compared to standard chargers, making it an environmentally friendly and cost - effective option. The military - grade safety features, including triple protection and an IP20 rating, provide peace of mind for users in all situations. The ultra - quiet operation ensures a pleasant charging experience, while its global compliance with international safety standards makes it suitable for use around the world. Despite its powerful performance, the charger has a lightweight 1.2kg design and a compact size that saves 40% space, making it highly portable and easy to install in various settings.
Product Feature
Intelligent Charging Protection
4-stage smart charging algorithm automatically optimizes for battery health
High Efficiency Design
92% conversion efficiency saves over 15% energy vs standard chargers
Military-Grade Safety
Triple protection (OVP/OCP/SCP) with IP20 rating
Ultra-Quiet Operation
Temperature-controlled fan maintains noise under 45dB
Global Compliance
Certified to CE/UL62368 international safety standards
Compact & Portable
Lightweight 1.2kg design saves 40% space
Product Application
Sharing Mobility
Batch charging for battery swap stations
Personal Use
Maintenance charging for premium e-scooters
Commercial
Rapid charging for delivery/patrol vehicles
The Electrical Scooter Charger extends battery life by 30% with smart algorithms, while its compact size saves 40% storage space - making it the professional choice for e-micro mobility.
Hot Tags: electrical scooter charger, China electrical scooter charger manufacturers, suppliers, factory, 58V Battery Charger, Electric scooty scooter, Electrical Scooter Charger, EV Charger 48v, Portable Ebike Battery Charger, Sightseeing trolley charger
Product Specification
|
Normal voltage range |
100~240V |
|
Input voltage frequency |
50/60Hz |
|
Input voltage range |
90Vac to 264Vac |
|
Power Factor |
PF>0.95 |
|
Max input input current |
8A Max |
|
Output voltage |
35-58.8Vdc |
|
Rated output voltage |
58Vdc |
|
Maximum output current |
10A |
|
Maximum output power |
580W |
|
Efficiency |
≥92% |
|
Operating temperature |
-20°C~40°C |
|
Storage temperature |
-20°C~70°C |
|
Cooling |
Forced Air Cooling |
|
Protection |
OCP/OVP/OTP/SCP |
|
Dimensions |
216*103*50mm |
