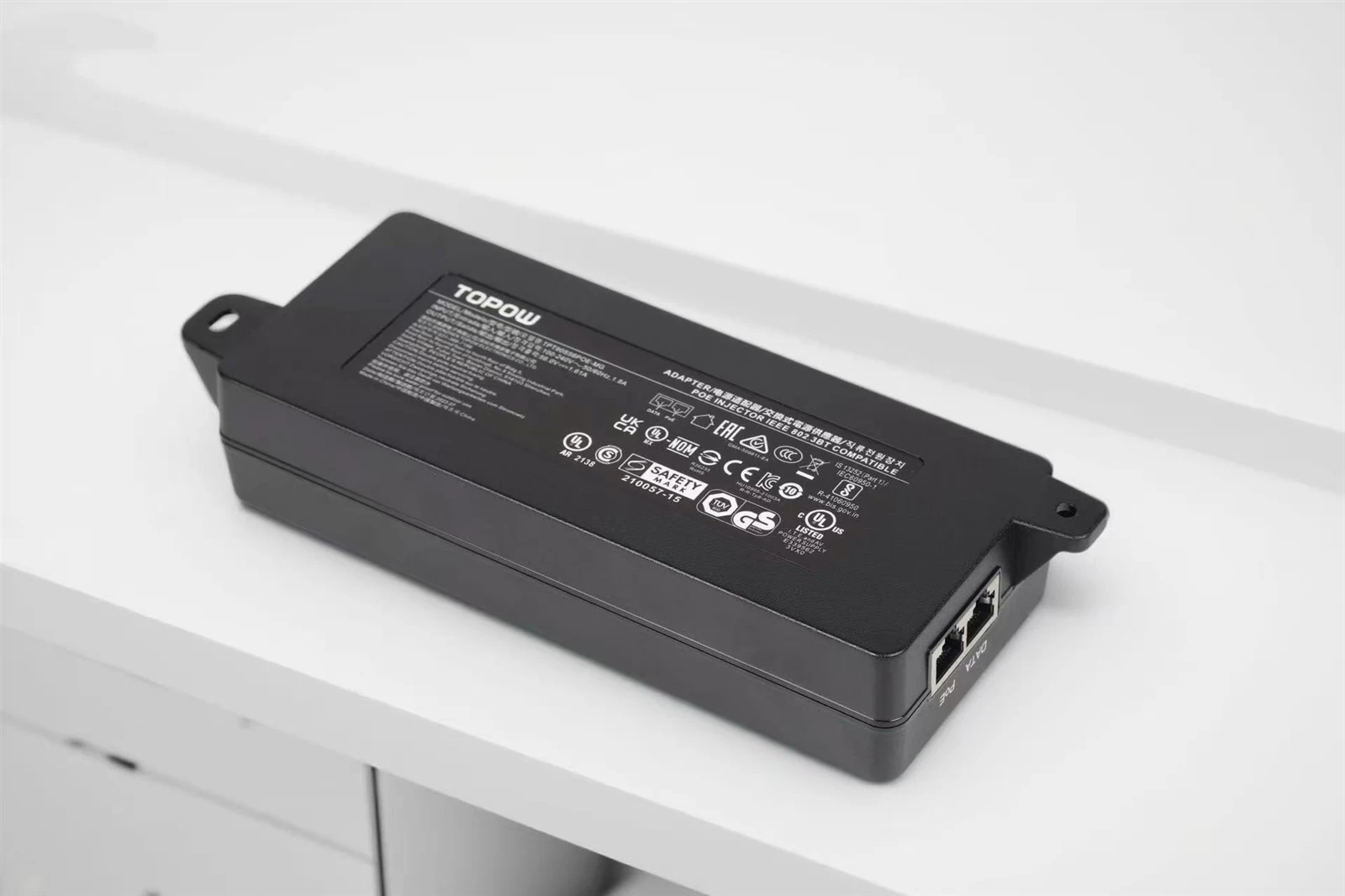

The TPT90S56POE is a high-performance 56V 90W PoE adapter custom-developed for Huawei (Huawei Model: AD-560161T0E), designed and manufactured by us. This integrated solution combines an AC/DC power supply with PSE (Power Sourcing Equipment) functionality, delivering both power and data over a single Ethernet cable to a wide range of PoE-powered devices.

Supporting a broad 90V~290V AC input range and delivering a rated output of 56V/1.61A (90W), the adapter fully complies with the IEEE 802.3bt standard while remaining backward compatible with IEEE 802.3af/at. With an extreme operating temperature range of -40°C to +65°C and high-speed data transmission up to 10G, it is the ideal power solution for next-generation network infrastructure in demanding environments.

Key Features

1. Integrated PoE Power Supply

Seamlessly integrates AC/DC conversion and PSE functionality, simplifying system cabling

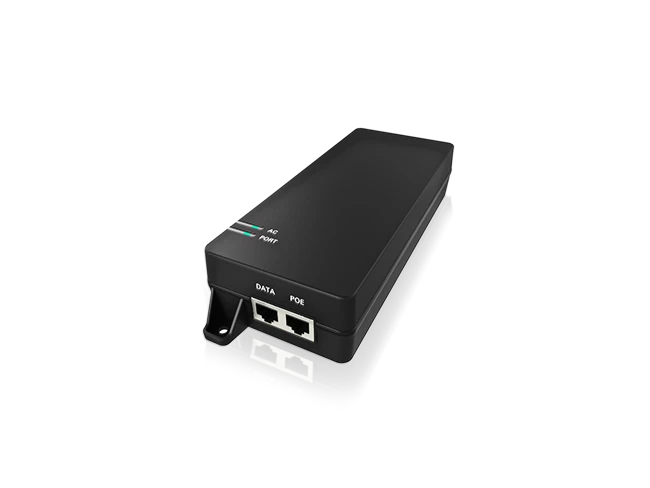

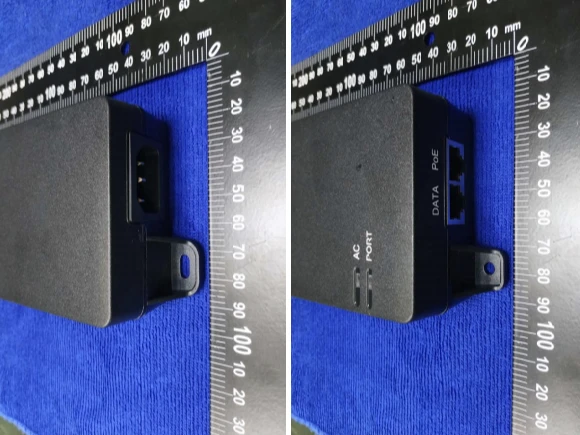

Equipped with two shielded RJ45 ports: DATA port for uplink connection to switches or network devices, and PoE port for integrated data + PSE power output
Full support for IEEE 802.3bt standard, backward compatible with IEEE 802.3af/at
Supports Type 1, Type 2, Type 3, and Type 4 standard PD devices

2. High-Speed Network Passthrough

Supports 10M / 100M / 1000M / 2.5GE / 5GE / 10GE data rates
Up to 100m with CAT5E UTP cable for 2.5G and below
Up to 100m with CAT5E shielded cable for 5G
Up to 80m+ with CAT6A double-shielded cable for 10G

3. High Efficiency & Wide Temperature Operation

Average efficiency ≥85%, meeting global energy efficiency requirements
Natural convection cooling – fanless design with noise level <30dB
Wide operating temperature range: -40°C to +65°C
Supports altitudes up to 5000m (operating temperature derates by 10°C per 220m above 1800m)

4. Comprehensive Protection

Input under-voltage protection (auto-recovery)
Output over-current protection (hiccup mode, 1.75A~2.2A)
Output over-voltage protection (hiccup mode, ≤60V)
Output short-circuit protection (auto-recovery upon fault removal)
3000VAC dielectric strength between AC input and PoE output for 1 minute

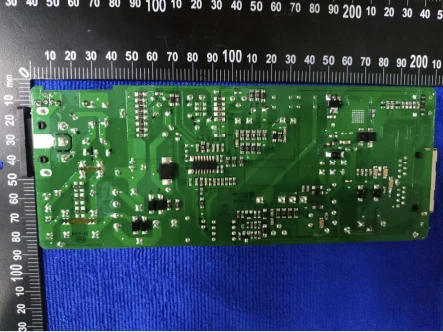

PCB conformal coating for enhanced moisture and dust resistance

5. Global Safety Certifications

Covers major global markets: CCC / CB / CE / TUV-GS / UL / EAC / BSMI / S-mark / NOM / PSB / RCM / KC / KCC / BIS / PSE
Complies with IEC/EN/UL 62368-1 and IEC/EN 60950-1 safety standards
Meets RoHS 2.0 and REACH environmental regulations

Applications

Enterprise Wi-Fi Deployment

Provides PoE power and data transmission for high-density Wi-Fi 6/6E/7 access points such as the Huawei AirEngine series. Simplifies installation, especially in ceiling and wall-mount locations where AC outlets are unavailable.

Intelligent Security Surveillance

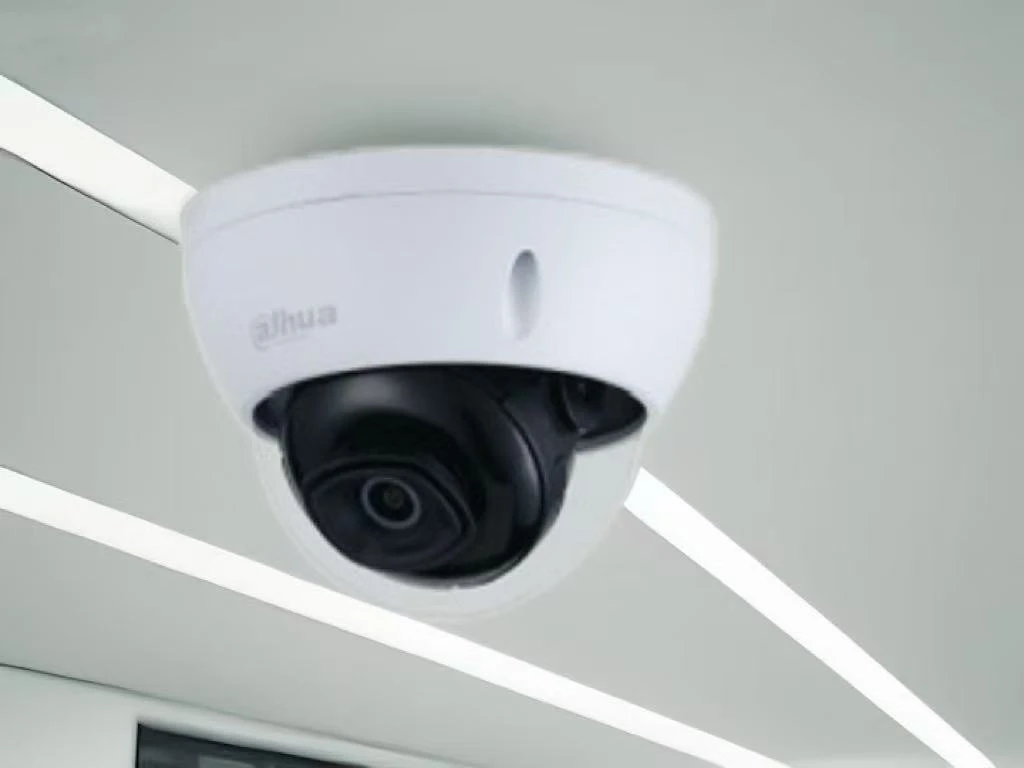

Delivers stable 56V PoE power to bandwidth-intensive 4K/8K PTZ IP cameras and multi-sensor panoramic cameras, suitable for both outdoor and industrial environments.

Industrial IoT

Ideal for smart manufacturing sensors, outdoor gateways, digital signage, and other industrial applications. The wide-temperature design ensures reliable operation under extreme climatic conditions.

Campus & Enterprise Networking

Easily add PoE capability to network edge devices without upgrading existing non-PoE switches, significantly reducing network upgrade costs.

pACKING MODE

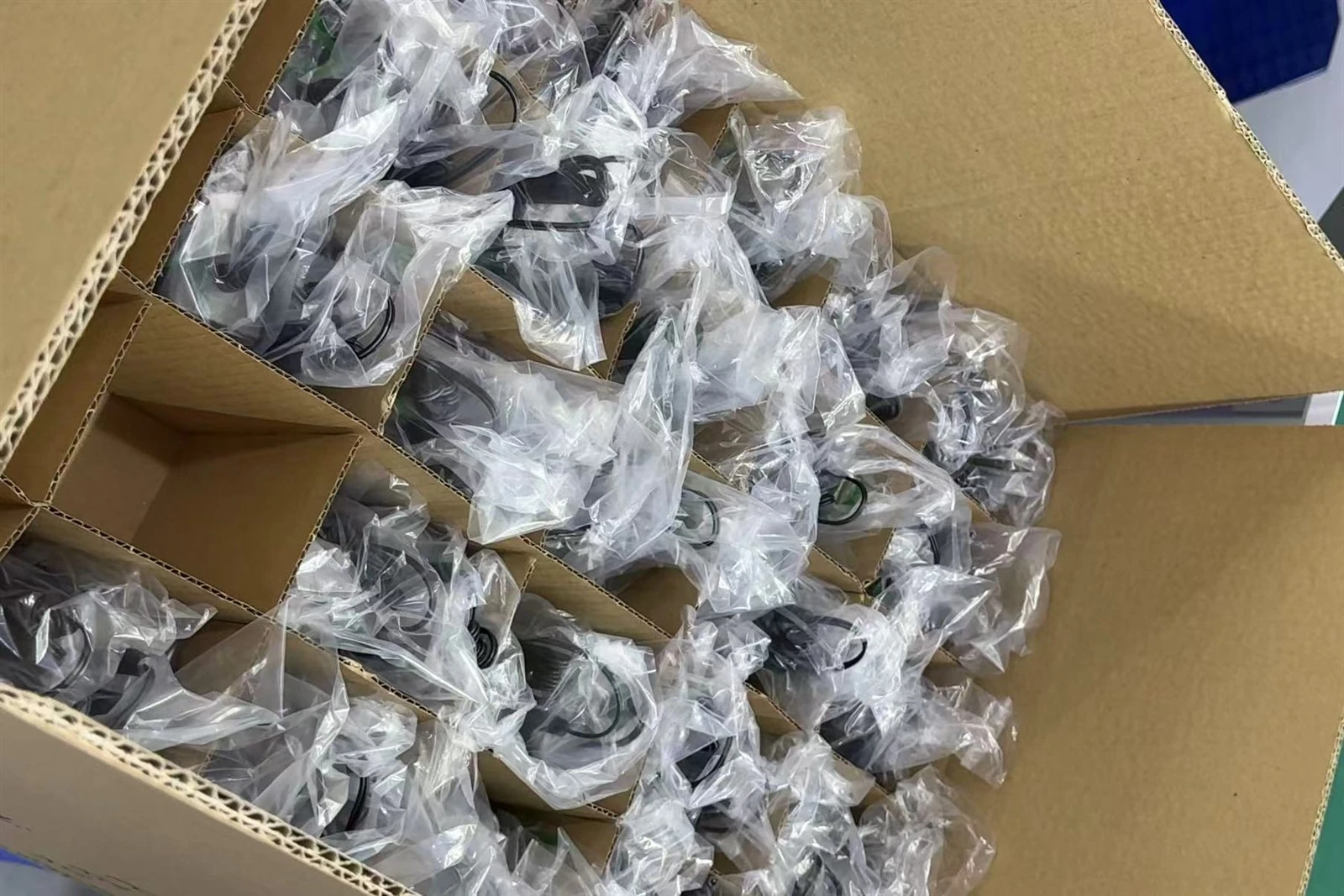

pE bag Partition

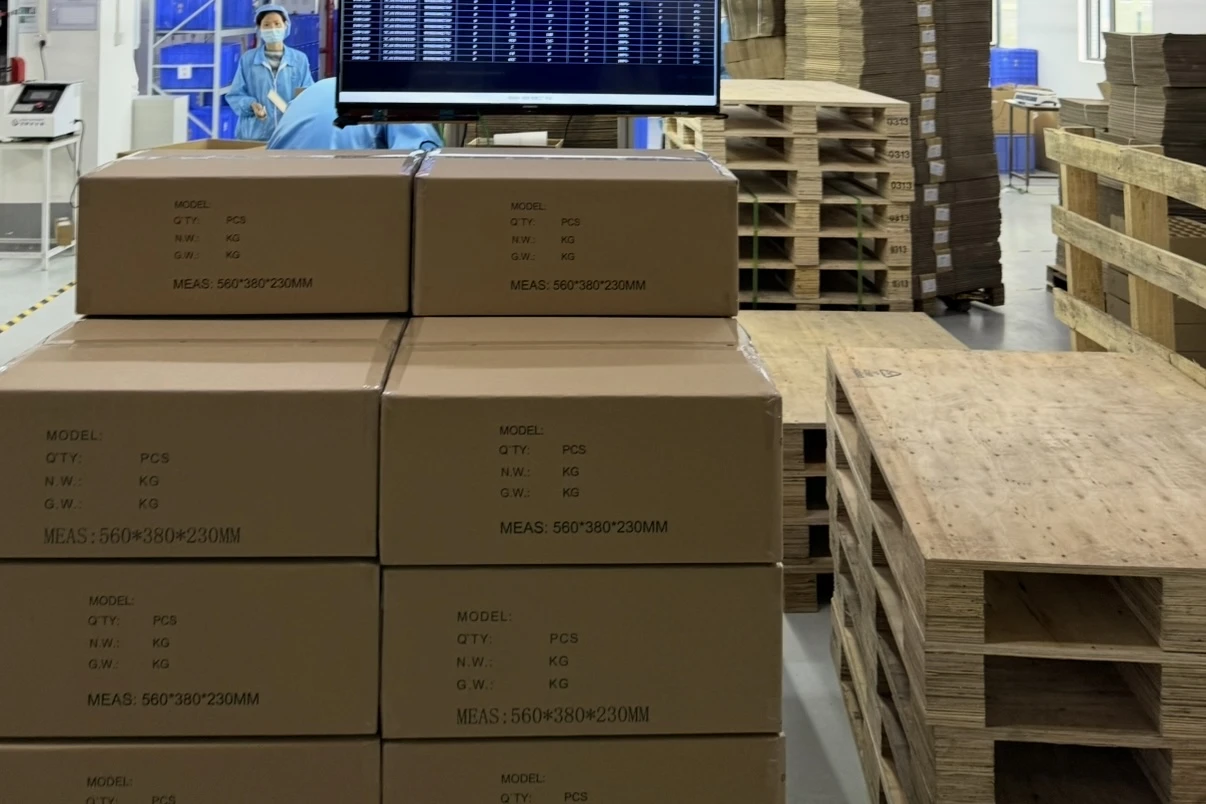

Carton Packaging

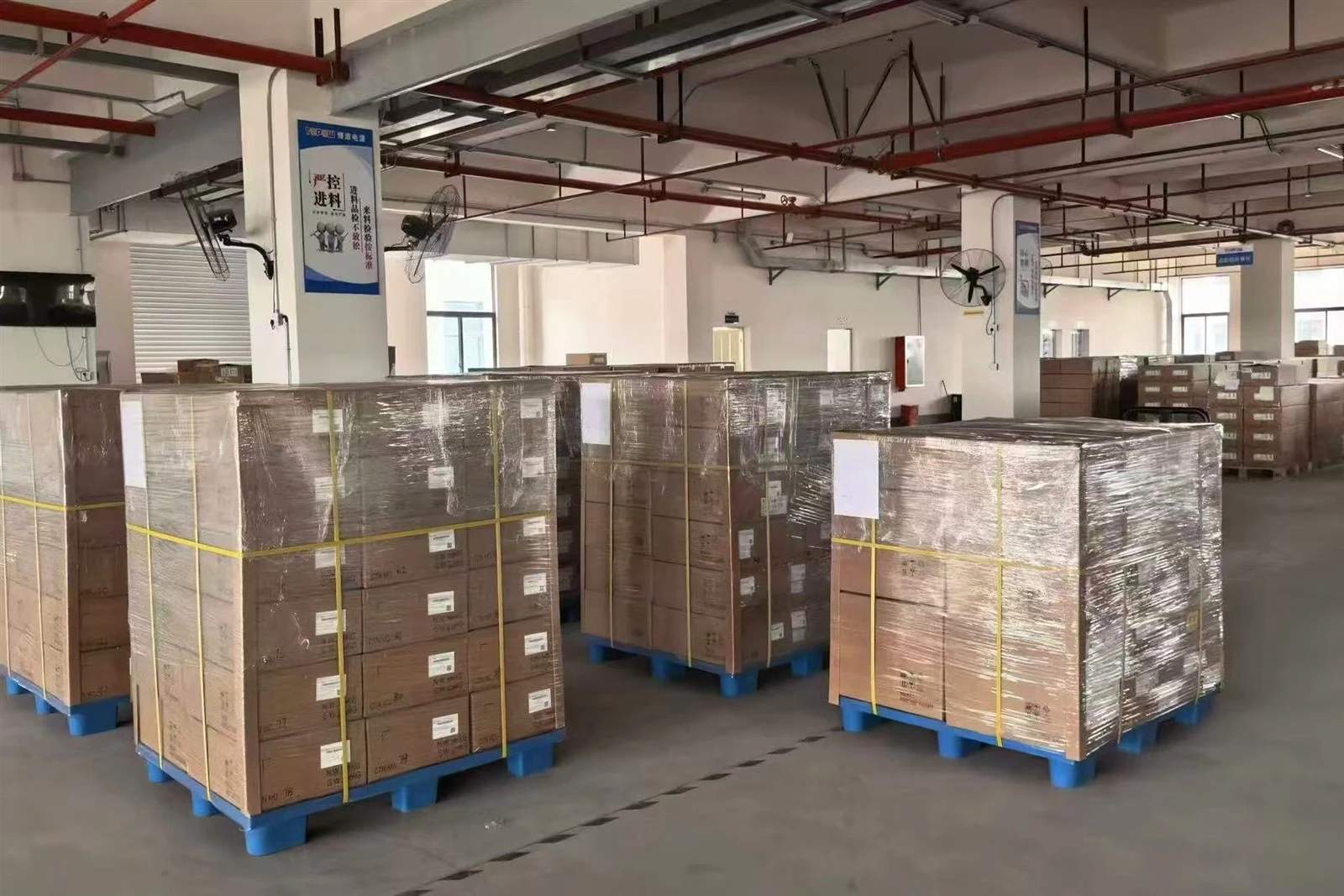

Pallet Packing

FAQ

Q1: What PoE standards does this adapter support?

A: This 56V 90W PoE adapter fully supports the latest IEEE 802.3bt standard (PoE++) and is backward compatible with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, powering Type 1 through Type 4 standard PD devices.

Q2: What is the difference between the two RJ45 ports?

A: The DATA port connects to a switch or upstream network device; the PoE port is the integrated data + PSE power output port that connects to the PD (Powered Device). Both RJ45 shield layers are directly connected and grounded for signal integrity.

Q3: Can the adapter operate in extremely cold outdoor environments?

A: Yes. This 56V 90W PoE adapter has an operating temperature range of -40°C to +65°C. It can start up and deliver normal output voltage within 5 minutes at -40°C. The low-temperature performance is maintained regardless of altitude.

Q4: What is the maximum network transmission speed supported?

A: This 56V 90W PoE adapter supports the full range from 10M to 10GE. For 10G rates, CAT6A double-shielded cable is recommended, achieving transmission distances of 80 meters or more.

Q5: Does the adapter require additional cooling?

A: No. This 56V 90W PoE adapter uses natural convection cooling with a fanless design (noise <30dB). Case temperature rise is well within safety limits – the surface temperature remains <95°C under 65°C ambient with full load.

Q7: How reliable is the 56v 90w PoE adapter?

A: The MTBF is ≥250,000 hours (@25°C). Electrolytic capacitor lifetime is ≥5 years at 40°C under full load, and ≥8 years at 30°C. The product has passed rigorous reliability tests including thermal cycling, damp heat, salt spray, and HALT (Highly Accelerated Life Testing).

TRANSPORT

Hot Tags: 56v 90w poe adapter, China 56v 90w poe adapter manufacturers, suppliers, factory, 60W POE Switch, 802 3bt 90W POE, 90W POE Injector, Ethernet POE Power Supply, Ethernet Power Supply, poe power supply

Products Specifications

Parameter	Specification
Model	TPT90S56POE

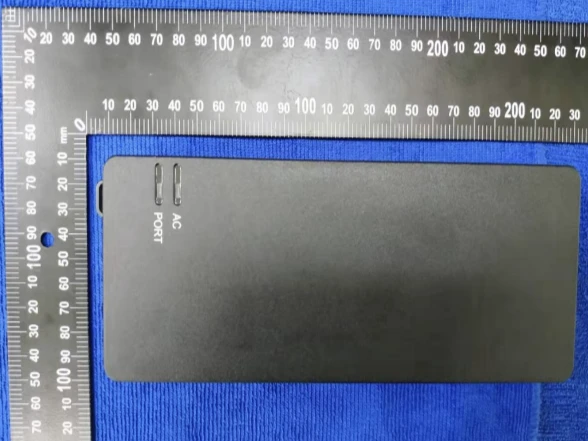

Dimensions (W×D×H)	191.5mm × 80mm × 40mm
Weight (excluding packaging)	Approx. 0.629kg
Input Voltage Range	90V ~ 290V AC
Rated Output Voltage	56V DC
Rated Output Current	1.61A
Rated Output Power	90W
Operating Temperature	-40°C ~ +65°C
Operating Humidity	5% RH ~ 95% RH (non-condensing)
Port Data Rates	10M / 100M / GE / 2.5GE / 5GE / 10GE
Operating Altitude	-60m ~ 5000m
Enclosure Material	PC UL94 V-0 flame retardant
Ingress Protection	IP40
Indicators	AC LED (Green) + PoE LED (Green)
MTBF	≥250,000 hours (@25°C)
Electrolytic Capacitor Lifetime	≥5 years (@40°C) / ≥8 years (@30°C)
