Product introduction:

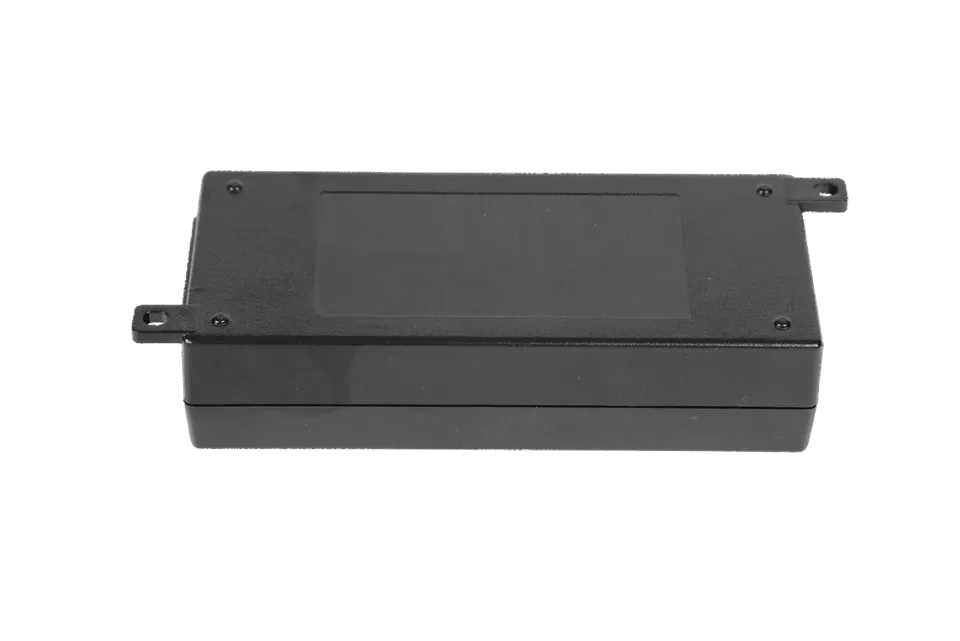

The POE Injector 30W is an IEEE 802.3bt compliant Power over Ethernet device designed for 30W high-power network equipment. Supporting 90-264VAC input with 54V/0.55A output, it delivers 80% efficiency and is certified to UL62368 and CE standards. The POE Injector 30W features smart power management that auto-detects PD requirements while maintaining backward compatibility with IEEE 802.3at/af devices. RJ45 two pairs of network cable output, maximum power up to 30W. Design in accordance with UL62368 and EN62368 the requirements of the standard.
With comprehensive protections including OVP (58-63V), OCP (0.55-1.0A) and SCP in hiccup auto-recovery mode, it passes 3000Vac isolation tests and EN55032 Class B EMC requirements. Operating from -10℃ to 50℃, the compact 110.5×57×33.5mm housing uses 94V-0 flame-retardant PC material, supporting 1000Mbps/2.5Gbps data transmission for security surveillance, wireless coverage and IIoT applications.
Product Application
Smart Power Management
Auto-detects PD requirements, compatible with 802.3bt/at/af
01
Industrial Protection
Triple safeguards (OVP/OCP/SCP), 3000Vac isolation
02
Global Certification
UL62368, CE, EN55032 compliant
03
High-Speed Data
1000Mbps/2.5Gbps transmission without performance loss
04
Compact & Durable
94V-0 flame-retardant case, -10℃~50℃ operation
05
Product Application
Industrial Automation
Power for PLCs, motor drives, and control systems
Telecommunications
Backup power for base stations and network infrastructure
LED Lighting
High-voltage LED arrays and driver circuits
Test Equipment
Precision instruments requiring stable dual-voltage inputs
Why Choose This POE Injector
The POE Injector 30W delivers stable power for HD IP cameras and NVR systems, enabling 24/7 continuous surveillance operation;
The POE Injector 30W is ideal for factory automation sensors and control devices, ensuring reliable data transmission in harsh environments;
It efficiently powers Wi-Fi 6/6E access points to meet wireless coverage requirements in high-density enterprise environments;
It provides centralized power for smart lighting and access control systems, simplifying wiring complexity for building automation upgrades;
It powers network switches and communication equipment in remote areas, solving traditional power supply challenges;
It powers digital signage and medical terminals in classrooms and clinics, ensuring continuous operation of critical equipment.
Everything You Need to Know
What standard does this PoE adapter comply with?
It complies with IEEE 802.3bt standard and is backward compatible with IEEE 802.3at/af devices.
Is it safe and certified for international use?
Designed to meet UL 62368 and EN 62368 safety standards, and compliant with EN55032 Class B EMI requirements.
Does it support high-speed data transmission?
Yes, it supports Gigabit (1000Mbps) and 2.5Gbps adaptive data transmission while delivering power simultaneously.
What's the typical lead time for bulk orders?
Normally 3–4 weeks after order confirmation, depending on quantity and customization
Hot Tags: poe injector 30w, China poe injector 30w manufacturers, suppliers, factory, 60W POE Switch, 802 3bt 90W POE, Ethernet POE Power Supply, Ethernet Power Supply, IEEE 802 3 at POE , poe power supply
Product Specification
|
Normal voltage range |
100~240Vac |
|
Input voltage range |
90~264Vac |
|
Input voltage frequency |
47/63Hz |
|
Inrush current |
80A Max |
|
Input fuse |
T3.15A/250Vac |
|
Max input AC current |
1A Max |
|
Output |
54V/0.55A |
|
Cooling method |
Ventilation |
|
Efficiency |
≥80% |
|
Operating temperature |
-10~50℃ |
|
Storage temperature |
-20~70℃ |
|
Protection |
OCP/OVP/SCP |
|
Dimensions |
110.5*57*33.5mm |
|
Data transmission rate |
1000 Mbps/2.5G |
