How Your Charger Affects Battery Life
Introduction
For electric two-wheelers, energy storage systems, and battery-powered devices, the battery is not only the energy source - it's also one of the most expensive components. Therefore, extending battery service life is not just a core user concern; it's also a critical measure of charger quality.
Many users tend to attribute battery degradation solely to the battery itself, overlooking the fact that the charger is the component the battery interacts with every single day. Its performance directly determines the battery's health trajectory. A good charger maximizes the battery's cycle life potential; a poorly designed one can quietly "overdraw" battery life over hundreds of cycles.
Key Charging Parameters That Affect Battery Life
1.1 Charging Voltage Accuracy: A ±1% Difference Can Mean Double the Lifespan
Lithium batteries are extremely sensitive to charge termination voltage. Taking the most common ternary lithium cell as an example, its rated charge termination voltage is typically 4.2V ± 0.05V.
- Voltage too low (e.g., only reaching 4.1V): While safer, the battery delivers only about 85%~90% of its capacity - users will feel the battery "doesn't last long."
- Voltage too high (e.g., reaching 4.25V or higher): Although it appears "more fully charged," the excessive voltage accelerates cathode material degradation and electrolyte decomposition. Studies show that for every 0.1V increase in charge termination voltage, lithium battery cycle life can be reduced by 30%~50%.
- Precise voltage (stable at 4.2V ± 1%): Ensures full capacity while avoiding overcharge stress - the foundation for long battery life.
Requirement for the charger: Output voltage accuracy must be controlled within ±1%, maintaining stability across temperature variations and input voltage fluctuations.
1.2 Charging Current and C-Rate: Lower Current Supports Longer Life
Charging current is typically expressed as "C-rate" - 1C represents the current required to charge a battery in one hour. For commonly used 18650/21700 cells in e-two-wheelers, the standard charging rate is typically 0.5C.
- High-current charging (≥1C): Shorter charging time, but lithium ions intercalate too rapidly into the anode, potentially causing lithium dendrite formation - which can pierce the separator and create short-circuit risks - while accelerating capacity degradation.
- Low-current charging (0.2C~0.5C): Lithium ions intercalate more fully and uniformly, reducing structural stress on the anode and extending cycle life.
Requirement for the charger: Supports configurable constant current (CC) during the CC stage, maintaining stability across input voltage variations.
1.3 Charging Profile (Algorithm): The Advantage of Four-Stage Charging
A quality charger should not simply use a basic two-stage "CC → CV" approach, but rather a more refined four-stage charging profile:
| Stage | Name | Function |
|---|---|---|
| Stage 1 | Pre-charge (Trickle) | Activates deeply discharged batteries with a small current to avoid damage from high current |
| Stage 2 | Constant Current (CC) | Rapidly charges the battery to approximately 80%~90% capacity at the set current |
| Stage 3 | Constant Voltage (CV) | Voltage held constant, current gradually decreases to ensure true "full charge" |
| Stage 4 | Float/Termination | Charging stops or switches to a minimal maintenance current to prevent overcharge |
The four-stage algorithm is particularly important for lead-acid batteries (requiring a precise CV stage to prevent thermal runaway) and lithium batteries (requiring accurate cut-off voltage to prevent overcharging).
Requirement for the charger: Must feature a comprehensive charge profile management system, with distinct algorithms for different battery types (lead-acid/lithium).
1.4 Ripple and Noise: Invisible "Micro-Damage"
Ripple refers to the residual AC component in the charger's output voltage or current. Excessive ripple generates additional Joule heat and micro-vibrations inside the battery, accelerating electrode material fatigue and electrolyte consumption. Over time, the cumulative effect of this "micro-damage" significantly shortens battery cycle life.
Requirement for the charger: Output ripple should be kept low (typically ≤ 200mV peak-to-peak) to minimize high-frequency stress on the battery.
Common Charging Misconceptions and Risks
| Misconception | Consequence |
|---|---|
| Mixing chargers arbitrarily | Using chargers from different brands or with different voltages can cause overcharging or undercharging. Overcharging may lead to fire or explosion; undercharging can cause "memory effect" (for nickel-based batteries) or sulfation (for lead-acid batteries) |
| Using cheap, low-quality chargers | Cheap chargers typically have poor voltage accuracy (errors may exceed ±5%), lack proper charge profiles, and omit overcharge protection. Long-term use accelerates battery degradation and presents fire safety risks |
| Prolonged overcharging (excessive float charging) | Overcharging lead-acid batteries causes electrolyte loss and grid corrosion; overcharging lithium batteries may lead to lithium plating, internal shorts, or even thermal runaway |
| Charging in high-temperature environments | High temperatures combined with charging-induced temperature rise accelerate internal side reactions. Always charge in a well-ventilated, cool location |
The "Longevity Code" of a Quality Charger
High-precision output voltage: Voltage regulation accuracy within ±1%, ensuring no overcharge or undercharge
Complete charge profile management: Supports multi-stage charging algorithms, adaptable to different battery types
Reliable protection functions: Over-voltage, over-current, short-circuit, reverse-polarity, and over-temperature protection
Low ripple output: Minimizes cumulative "micro-damage" effects on the battery
Clear charging indication: Keeps users informed of charging status to prevent mishandling
Temperature compensation (for lead-acid): Adjusts charging voltage based on ambient temperature (approximately 3mV per cell per °C) to prevent overcharging in summer and undercharging in winter
Conclusion
A charger is not just an "energy transporter" - it's a "health manager" for your battery.
A premium charger may cost slightly more upfront, but over its lifetime, it can extend battery life by hundreds of cycles - for a battery worth hundreds or thousands of dollars, that is an exceptionally cost-effective investment.

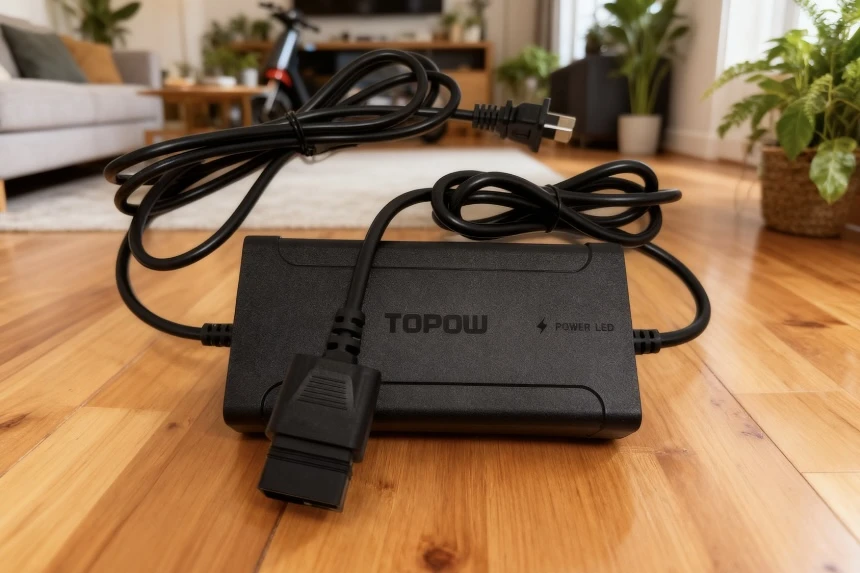

TOPOW Electronics has been deeply involved in charging technology for over two decades. Our full range of e-two-wheeler chargers strictly adheres to a four-stage charging profile, with output voltage accuracy within ±1%, comprehensive over-voltage/over-current/short-circuit/reverse-polarity/over-temperature protection, and independent charging algorithms for different battery types (lead-acid/lithium). We firmly believe that quality is not a cost - it is the most effective investment. Choosing TOPOW means choosing a reliable "health manager" for your battery.
