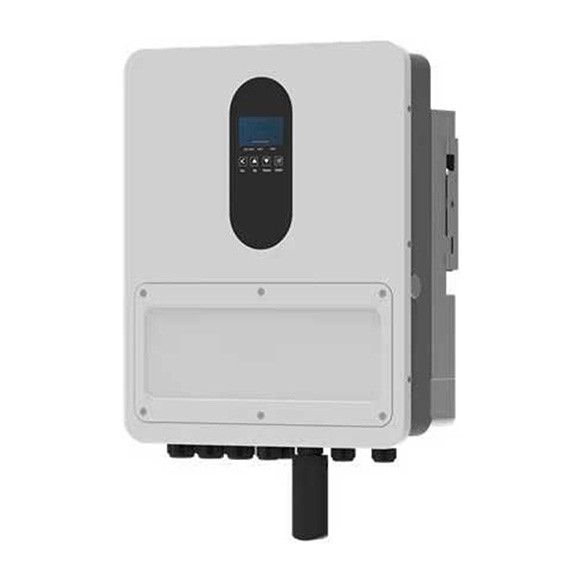

Product introduction:
The 6kw off grid inverter uses advanced control algorithms to implement an integrated energy management system in the photovoltaic and energy storage systems to control and optimize the energy flow. During the day, the power generated in the PV system is used by the loads, with excess energy stored in the batteries. At night, when there is no solar energy, the energy stored in the batteries can be discharged to the loads. The off-grid inverter has both HMI and LED local monitoring and EMS system remote scheduling functions, with excellent load adaptability and grid adaptability. Meanwhile, the good hardware design makes it effective to deal with a variety of complex application environments, and the system operation is safer, more reliable, more economical, and more adaptable to the environment. Low-voltage single-phase off-grid inverters are suitable for residential and small commercial and industrial PV energy storage systems
advantages of our products
1.7 times the maximum MPPT input power; under specific conditions, supports up to 2 times the PV input power.
Maximum MPPT input current of 28A, supporting multiple strings of photovoltaic panels connected in parallel.
Dual AC outputs with intelligent load management.
Configure up to 6 inverters in parallel to form a single-phase or 9 inverters to form a three-phase
IP66 protection rating.
Supports battery-free operation mode
1.5 times grid input over-provisioning technology.
5-year warranty / 10-year service (optional).
Basic System Architecture
The following illustration shows basic application for this unit.It also required the following devices to have a complete running system:
● Generator or Utility mains
●PV modules
Product size(W*H*D): 395*485*156(mm)
Recommended inverter installation angle: vertical or tilted back ≤ 15°.
Do not install the inverter upside down, tilted forward, tilted backward beyond the angle, or horizontally.
FAQ
01.What is the rated output voltage and frequency of 6kV off-grid inverter?
02.What protection functions does the inverter include?
03.What is warranty and after-sales support policy?
04.What are the off-grid inverter connected forms that this inverter can support?
05.What is the voltage range that a 6kV inverter can support?
The 6kw off grid inverter combines robust performance with user-friendly monitoring (LCD + Alps Cloud APP), making it ideal for professional installations where power reliability is critical.
Hot Tags: 6kw off grid inverter, China 6kw off grid inverter manufacturers, suppliers, factory, 6kw Off Grid Inverter, Home use Off Grid Inverter, off grid hybrid inverter, off grid inverter, pv inverter, Residential Off Grid Inverter
Product specification
|
Model |
TPH6LS |
|
Battery Type |
Lithium-ion& Lead-acid |
|
Rated Battery Voltage |
48Vdc |
|
Battery Voltage Range |
40~60Vdc |
|
Max. Charge/Discharge Current |
120 / 135A |
|
Forced Wake-up by PV |
YES |
|
Max. PV Access Power |
12000W |
|
Max. MPPT Input Power |
10200W |
|
Max. Input Voltage |
500Vdc |
|
Rated Input Voltage |
370Vdc |
|
MPPT Voltage Range |
60~450Vdc |
|
No. Of MPPT/ Strings Per MPPT |
1/2 |
|
Max Input Current Per MPPT |
28A |
|
Max. Short Circuit Current Per MPPT |
35A |
|
Rated Grid Voltage |
220/230/240±5%Vac |
|
Voltage Input Range |
90~280Vac |
|
Rated Grid Frequency |
50/ 60Hz |
|
Max Input Current |
40A |
|
Total Harmonic Distortion |
<3% (of nominal power) |
|
Rated Output Power |
6000W |
|
Rated Output Current |
27A |
|
Rated Output Frequency |
50/60±0.1%Hz |
|
Overload Capability |
1min@101-110%;10s@110%～150%; |
|
Switch Time (ms) |
10ms for Computer Equipment,20ms for Household Equipment |
|
Total Harmonic Distortion |
<3% |
|
Max. Efficiency |
97.00% |
|
MPPT Tracking Efficiency |
99.90% |
|
Integrated |
DC Polarity Reverse Connection Protection, AC Output Over Current Protection, Thermal Protection, AC Output Over Voltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Over Voltage Load Drop Protection, Power Network Monitoring, Earth Fault Detection, Surge protection level |
|
Surge Protection |
TYPE II(DC),TYPE II(AC) |
|
Over Voltage Category |
OVC II (DC),OVC III (AC) |
|
Operating Temperature (℃) |
-40~+60(Above 45℃ Derating) |
|
Dimensions [W*H*D] |
395*485*156mm |
|
Weight (kg) |
14.5 |
|
Inverter Topology |
Non-Isolated |
|
Cooling |
Smart cooling |
|
Altitude (m) |
≤3000 |
|
Protection Level |
IP66 |
|
Communication |
RS232 / RS485 / CAN / Dry contact/ External battery NTC/ Parallel communication/WIFI(optional) |
|
Warranty |
5Years |
|
Safety Standards |
IEC 62109-1:2010, EN 62109-1:2010, IEC 62109-2:2011, EN 62109-2:2011 |
|
EMC Standards |
EN IEC 61000-6-1:2019;EN IEC 61000-6-3:2021;EN IEC 61000-3-11:2019;EN61000-3-12:2011 |
|
Efficiency Standard |
IEC 61683:1999 |
